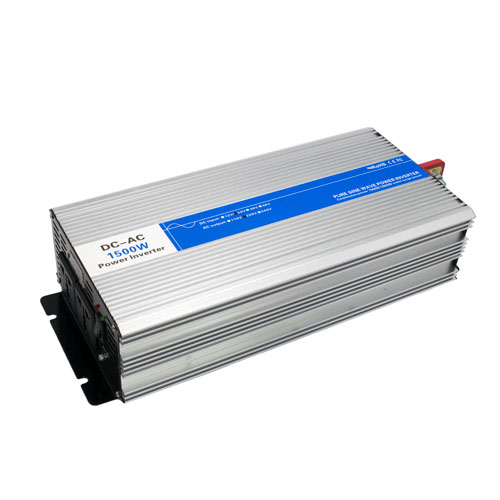

Power Inverter DC24V to AC220V 1500W
$ 437.00 excl. GST
Power Inverter DC24V to AC220V 1500W
$ 437.00 excl. GST
The inverter is an electrical device, which is used to convert the DC power to an AC power.
Application:
- In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
- Industry equipment series: solar energy, wind power, gas discharge lamp and etc.
- Office area: Computer, printer, copier, scanner, digital camera and etc.
- Kitchen utensils series: Micro-wave oven, induction cooker, refrigerator, and etc.
- House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, 3P air condition, and etc.
- Power tool series: electric saw, drilling machine, punching machines, air compressors etc.
- Ideally suitable for Journeys, Camping, Tents, Boat Trip
Description
Product features:
- Low battery shut-off
- Hight battery shut-off
- Automatic overheat shut-off
- Overload protection
- High frequency pulse width modulation technology
- Excellent double-faced circuit board and components
- High quality and high performance
Additional information
| Weight | 4.76 kg |
|---|---|
| Dimensions | 412 × 200 × 128 mm |
| Converter Dimensions (W*H*D) | 385 x 165 x 82 mm |
| Output Power | 1500W |
| Peak Power | 3000W |
| Input Voltage | DC24V |
| Output Voltage | 220VAC±5% |
| No-load Current (less-than) | 0.6A |
| Output Frequency | 50 HZ ± 0.5 HZ |
| Output Wave | Pure sine wave |
| Waveform Distortion | THD < 3% (linear load) |
| USB | 5V 1000MA |
| Max. Working Efficiency | 94.80% |
| Input Voltage Range | 19.8-30.27V |
| Operating Temperature Range | – 10°~ +50° |
| Storage Temperature | – 30° ~ +70° |
| Humidity | Max. 90%, non-condensing |
| Starting | bipolar soft start |
| Low Voltage Alarm | 21V ± 0.5V |
| Low Voltage Shut Down | 20V ± 0.5V |
| Low Voltage Recovery | 24V ± 0.5V |
| Over Voltage Shut Down | 31V ± 0.5V |
| Over Voltage Recovery | 29.5 ± 0.5V |
| LED Lights | Blue indicator light (inverter output, normal operation); the red indicator flashes (under / over voltage, overload, temperature, short circuit) |
| Protection | Battery over under / over voltage, overload, temperature, AC short circuit protection (positive and negative polarity protection) |
| Fuse | DC short circuit protection |
| Display | LED high-definition digital display |
| Circuit Topology | Frequency link |
| Cooling Way | Intelligent cooling built-in cooling block |
