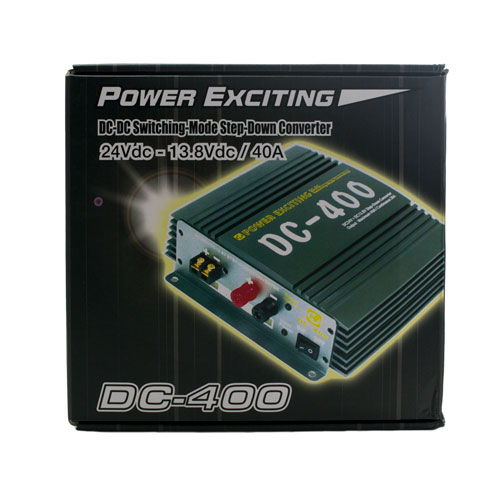

DC-DC Converter 40A 24V-12V

$ 198.00 excl. GST

SKU: 10400240-1
Category: DC-DC Converter

Features:

  • Special design and decorous car amplifier heat sink housing
  • Less heat dissipation without over-heating problem
  • Switching-mode technology (25KHz)
  • High efficiency over (85%)
  • Good load and line regulations
  • Wide input voltage range (20V-30V)
  • Output over-voltage and current protections (OVP & OCP)
  • Output short circuit protection
  • Forced air cooling (DC-400/600/800)
  • Key remote control (on/off)
  • Power on/off switch
Converter Dimensions195 x 200 x 70 mm
Converter Weight1.5 kg
Input Voltage Range24V DC (24V DC ~ 30V DC)
Output Voltage13.8V DC +- 0.1V
Max. Output Current40A
Continuous Current30A
No Load Input Current<=100mA
Line Regulation0.1%
Load Regulation0.02%
Output Ripple Noise50mV (rms)
EfficiencyOver 85%
IndicatorsInput Red LED Output Green LED

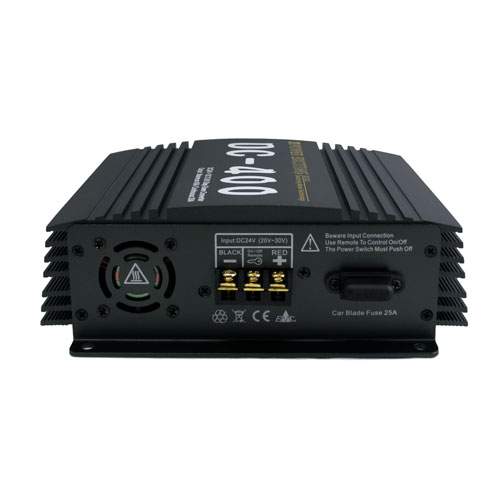

Input Connection TypeTerminal with (ACC)
Output Connection Type1 Binding Post + 1 Terminal
Output Fuse25A
Cooling SystemThermally Control Fan
